10 Mil Polyimide Tape
Silicone / 1/8 in
$70.00
Sale price
$70.00
Regular price
Skip to product information

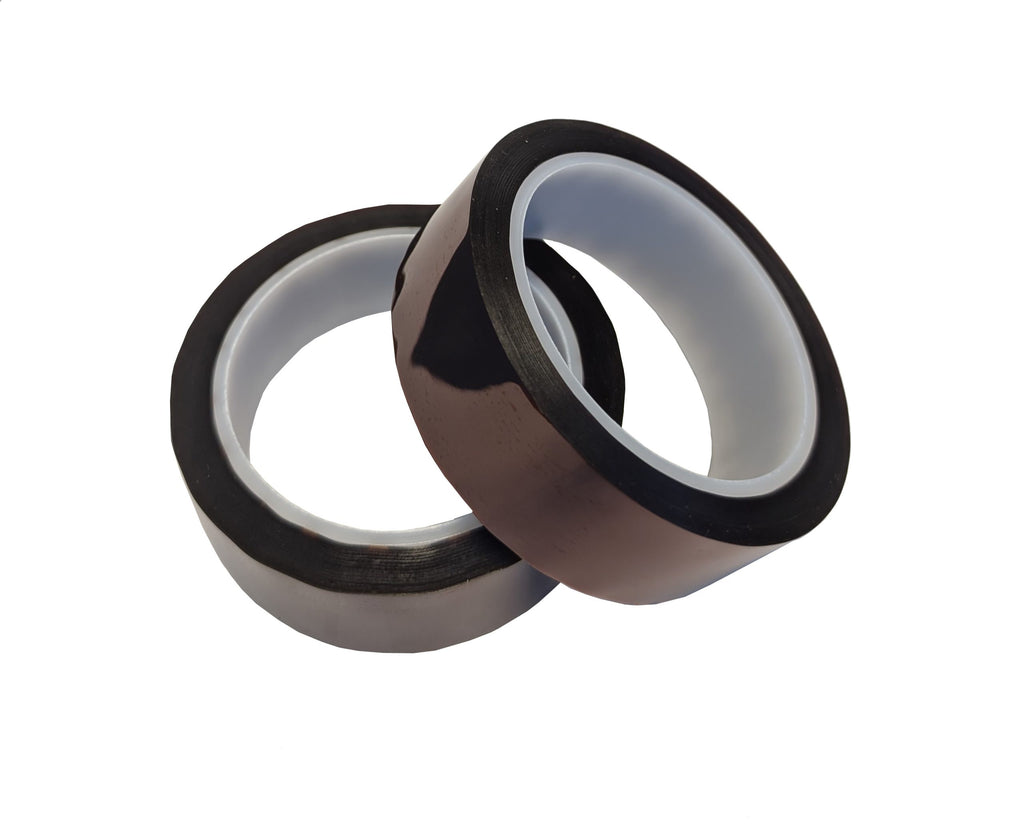

10 Mil Polyimide Tape
$70.00
Sale price
$70.00
Regular price

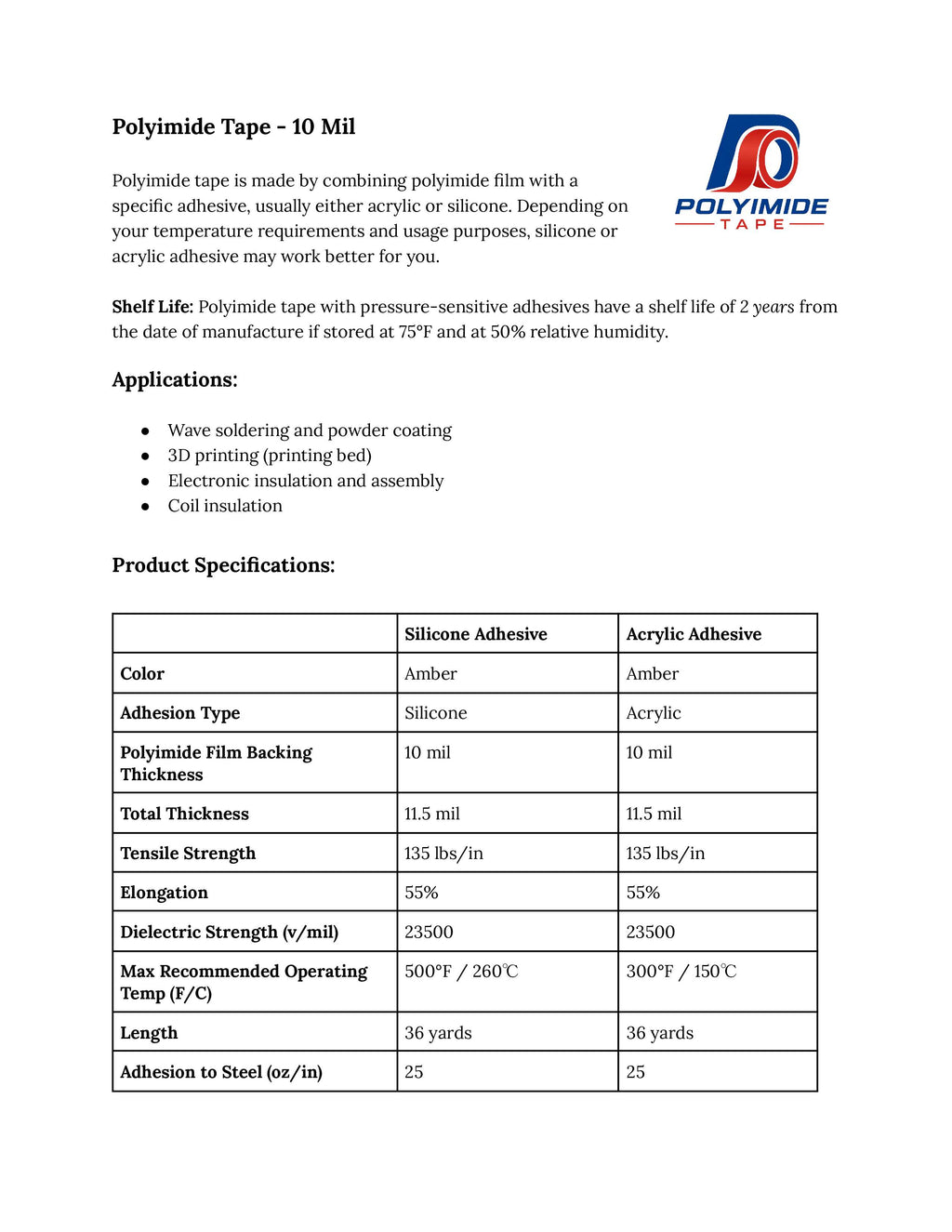

Product Specifications:
|
Silicone Adhesive |
Acrylic Adhesive |
|
|
Color |
Dark Amber |
Dark Amber |
|
Adhesion Type |
Silicone |
Acrylic |
|
Polyimide Film Backing Thickness |
10 mil |
10 mil |
|
Total Thickness |
11.5 mil |
11.5 mil |
|
Tensile Strength |
135 lbs/in |
135 lbs/in |
|
Elongation |
55% |
55% |
|
Dielectric Strength (v/mil) |
23500 |
23500 |
|
Max Recommended Operating Temp (F/C) |
500°F / 260℃ |
300°F / 150℃ |
|
Length |
36 yards |
36 yards |
|
Adhesion to Steel (oz/in) |
25 |
25 |
Polyimide tape is made by combining polyimide film with a specific adhesive, usually either acrylic or silicone. (Silicone adhesive polyimide tape is often known under the brand name Kapton.) Silicone adhesive tapes have a high temperature resistance rating of 500°F but are more expensive compared to acrylic adhesive tapes, which have a lower temperature rating of 300°F .
Each roll is 36 yards long; this listing is for the 10 mil thickness tape. Our polyimide tape resists acids, oils, solvents, and bases and has superb dielectric strength ideal for electrical insulation usages.
Common Applications: soldering, powder coating masking, and other uses that require a mix of high heat adhesive tape and clean removal with no residue.
Polyimide tape is naturally amber, but we offer black polyimide tape as well.
